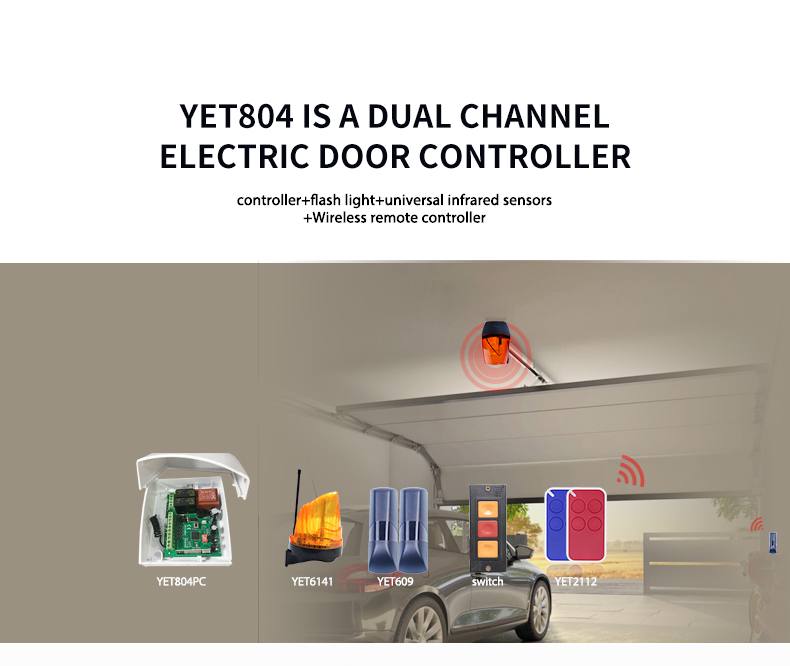

YET804PC is a tubular motor rolling shutter controller dedicated to electric door control, with functions such as setting stroke, automatic door closing with delay, bounce upon resistance, over-current detection, limit switch and other functions. It is widely used in garage doors, supermarkets and other places.

Specification:

1.Working voltage : 220V AC

2.Output voltage: 220V AC

3.Working Freuqency: 433.92Mhz

4.Max running time: 120s

5.Memory: 30 pcs remote control

6.Controller provides a +12V DC power putput terminal VCC, All signal input is 5V.

DIP switch instruction:

Dip switch function:

1. DIP switch 1( AC): auto-close delay time function setting, ON with function and OFF without that function.

2. DIP switch 2: close momentary function setting ,ON with function and OFF without that function.

PS: when the motor open time more than the running time you setting , the motor will stop work and will not do the auto-close function.
