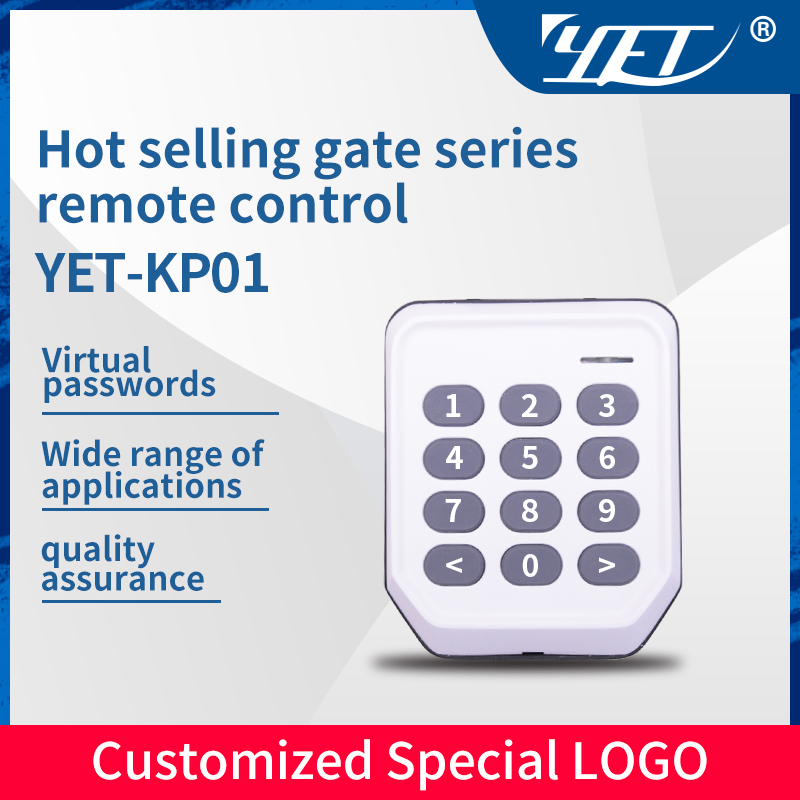

YETKP01 Wireless gate keypad

Here comes new product-YETKP01 password digital keypad. Waterproof protection level is IP54, rolling code HCS301 433mhz wireless keypad. Working voltage: 3V (2 AAA bateries),Passwords 0 - 8 bits, 2CH. Working distance 200 meters in outdoor.

The units are designed to ensure battery life equivalent to an estimated of 2 years of operation considering 10 transmissions/day. However, it is recommended to replace it every 12 months to ensure optimal performance, especially in locations subject to high temperature ranges.

This Keypad adopts rolling code coding format. Pressing any key in hibernation state can wake up the microcontroller, at this time, the upper right corner of the LED lights up.

*Auto lighting: the LED will light up automatically when any key is pressed;

*Auto standby: when no key is pressed for 10 seconds in a row, the system automatically enters the power-saving standby state.

Method of use:

* Methods for 1-channel transmit codes: Enter the password for 1 channel and then press the ‘<’ key

* Methods for 2-channel transmit codes: Enter the password for 2 channel and then press the ‘>’ key

① If the password is correct, the buzzer sounds long and sends the code for about 2 seconds.

② If the password is incorrect, the buzzer will beep 5 times in a row, and then you can operate again.

③ If the password is set to null: the code can be sent directly by pressing the ‘<’ or ‘>’ key.
