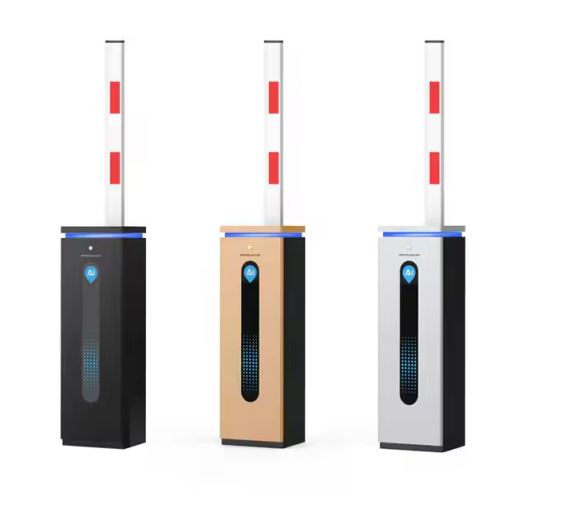

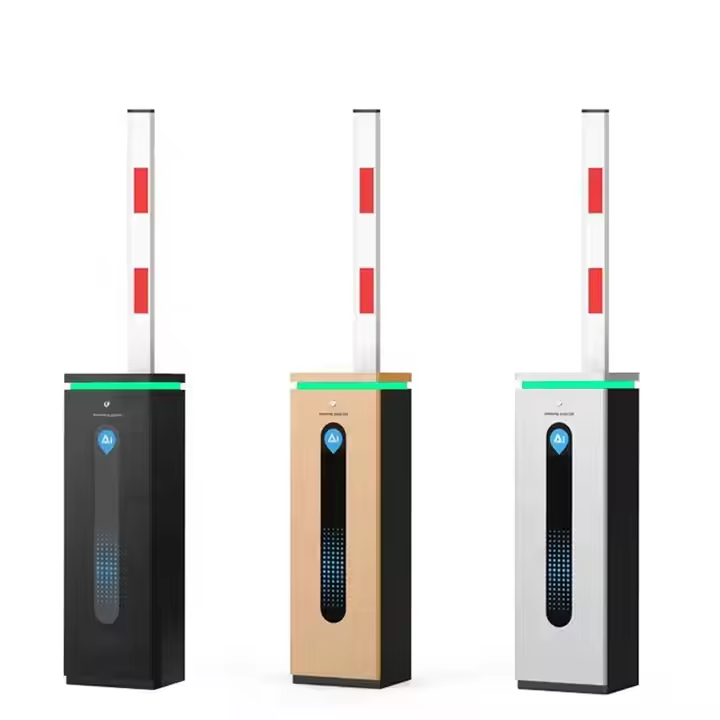

IBG-610 Budget BLDC Barrier Gate | Reliable Vehicle Access Control

Key Features

Adjustable speed & quick-swap installation

Boom rise/fall time adjustable from 1.5-6 seconds (default 3s; 1.5-s variant at additional cost). Left-right mounting direction can be changed on-site without complex disassembly, cutting setup time.

Adjustable sensitivity obstacle rebound reverses the boom on contact to avoid vehicle damage. It supports two anti-crash solutions: external infrared photocell anti-smash and ground-loop / radar detection. Detector signal output (NO / NC) is selectable to match different parking hardware.

Flexible power-failure backup

Manual or automatic boom lifting is available during power loss, with auto-restore once power returns. An optional storage module enables automatic boom-up upon power cut. The 24V battery interface supports solar charging for off-grid locations. Anti-collision alarm is offered as an optional upgrade for high-security sites.

Provides COM/NO/NC limit signal output for connection to parking management platforms. Built in ports include: traffic-light interface (2A, max 40W, 24V / 220VAC), delayed boom-drop, pulse counting, plus native RS485 and CAN bus — no extra communication modules required.

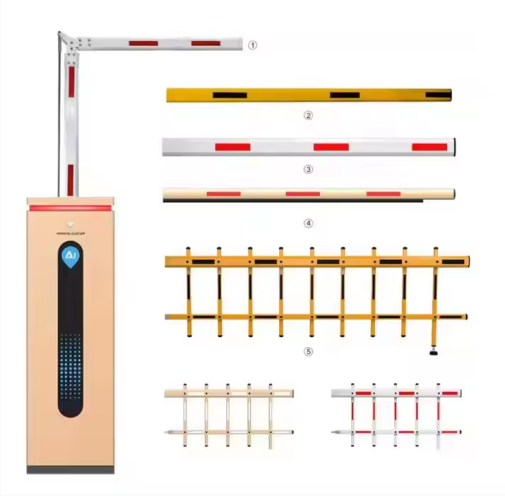

Three-link mechanical structure ensures smooth boom operation. MTBF exceeds 3 million cycles. The 1.5 mm thick metal cabinet reaches IP54 ingress protection, working steadily at -30℃ ~ +60℃ with humidity ≤85%. It supports a maximum 6‑meter boom. Rated DC24V, 100W power; cabinet weight 34 kg (boom excluded). Copy-protected remote reception prevents unauthorised signal duplication, with open-air remote range up to 50 meters.

Compatible Peripherals: YET RF Remotes, Photocells & Warning Lights

RF Wireless Remotes

This barrier adopts copy protected signal reception to prevent unauthorised cloning. Remotes or receivers need dry-contact switch-signal output and work on mainstream parking frequencies such as 433.92 MHz.

Rolling code remotes are recommended for high security sites, while multi frequency copy remotes serve as cost‑effective spare transmitters for end‑users.

Infrared Photocells

The barrier's infrared anti-crash function relies on external photocell sensors. Sensors must output switch-type signals to the barrier's anti crash terminal. Waterproof photocells are strongly suggested for long-term outdoor deployment.

Flashing Warning Beacon Lights

Warning beacons connect to the barrier's dedicated traffic-light port. Ensure total load power stays under 40W and voltage matches 24V or 220VAC. The beacon should flash while the boom moves, giving clear visual alerts to nearby vehicles and pedestrians.

If you are evaluating peripheral hardware to match your barrier projects, explore our portfolio of RF remotes, photocells and warning lights for proven interoperability.
