The All-Round Infrared Sensing Pioneer — YET616IR Redefining Automated Perception

2025-12-08

In industrial automation, intelligent security, and smart homes, sensors serve as the critical "perceptual nerves" of systems, their performance directly determining responsiveness, stability, and adaptability. The YET616IR Universal Infrared Sensor (RX/TX) stands out with advanced technology, versatile compatibility, and user-friendly operation, breaking through the limitations of traditional sensing devices to become the preferred choice for automated scenarios, delivering efficient and reliable sensing solutions across diverse fields.

1.Hardcore Technology for Stable Performance in Harsh Environments

Equipped with mature infrared sensing technology, the YET616IR features a core wavelength precisely locked at 940nm—a golden frequency band that ensures strong anti-interference and accurate signal transmission. Its detection performance is impressive, with a maximum range of up to 40 meters. Even in harsh weather conditions such as rain, dust, or heavy fog, it retains over 30% of its effective detection range, completely solving the common problem of traditional infrared sensors "failing" in complex environments. Whether deployed in outdoor industrial production lines, open-air security monitoring systems, or dusty warehouse and logistics areas, the YET616IR operates steadily, continuously outputting stable signals to provide all-weather, uninterrupted sensing support, freeing users from worries about environmental impacts on equipment performance.

2.Wide Voltage & Low Power Consumption for Multi-Scenario Adaptation

In terms of power supply compatibility, the YET616IR offers exceptional flexibility. It supports a wide voltage input range of DC9-50V/AC6-36V, seamlessly adapting to high-voltage industrial setups and low-voltage civil applications alike. There’s no need for additional voltage converters, which significantly reduces installation costs and the complexity of circuit modifications. Additionally, its low-power design is a standout feature: the RX receiver operates at just 35mA, while the TX transmitter uses only 25mA. During long-term continuous operation, this low power consumption effectively reduces energy usage, lowering operational costs and aligning with the global trend of green energy conservation—perfect for both large-scale industrial applications and personal smart home upgrades.

3.Professional Parameters & Compact Design for Universal Fit

Tailored to professional application needs, the YET616IR boasts impressive core parameters. Its relay output delivers a maximum current of 2A@24VDC, capable of directly driving small motors, solenoid valves, indicator lights, and other small-to-medium actuators without the need for additional amplification modules. This simplifies system architecture and reduces equipment integration complexity. The sensor performs reliably across a wide temperature range of -20℃ to 70℃, withstanding extreme cold in northern outdoor environments, intense heat in industrial workshops, and humidity in coastal areas. Its compact dimensions of 85×55×30mm allow flexible installation in space-constrained locations, fitting seamlessly into diverse application environments without occupying excessive space.

4. Easy Installation for All Users

Designed with user-friendliness in mind, the YET616IR ensures hassle-free installation. The recommended installation height is no less than 20cm, with a minimum distance of 2 meters between the transmitter and receiver. They should be vertically aligned on the same horizontal line, following the sequence of "installing the receiver first, then the transmitter." Once the receiver’s OFF indicator turns off, simply secure the units and connect the wires—no complex debugging tools required. For sensitivity issues in close-range installations, users can easily remove the condensing lenses from both the transmitter and receiver to enhance performance without professional technical support. Adding to its convenience, the sensor supports 180° rotation adjustment, enabling precise photocell alignment regardless of the base mounting orientation, making installation quick and easy even for beginners.

5.Versatile Application for Intelligent Upgrades

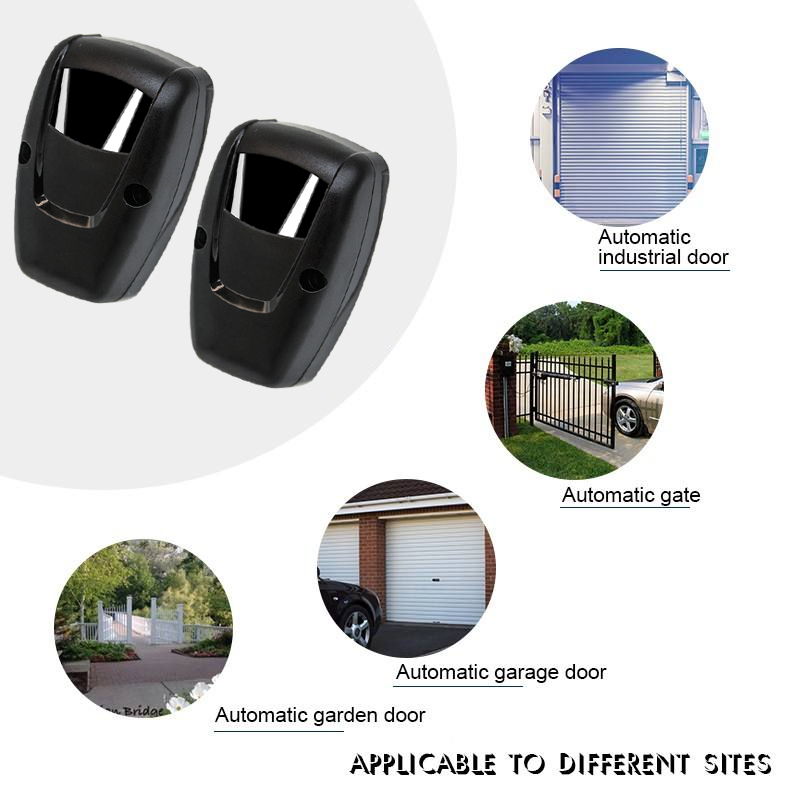

The YET616IR’s powerful performance enables seamless adaptation to multiple fields: in industrial production, it facilitates material transmission detection and equipment linkage control; in intelligent security, it enables human body sensing and regional intrusion monitoring; in smart homes, it triggers automatic lighting and door/window linkage; and in warehouse logistics, it supports cargo tracking and storage space detection. Whether for enterprise-scale industrial automation or personal smart upgrades, the YET616IR offers tailored solutions with its strong anti-interference, wide compatibility, easy installation, and stable performance, helping users cut costs, boost efficiency, and unlock new intelligent possibilities.

Choose the YET616IR for reliability and efficiency. This all-in-one infrared sensor will become an indispensable assistant for your automated systems, driving production and daily life toward greater intelligence and efficiency.
