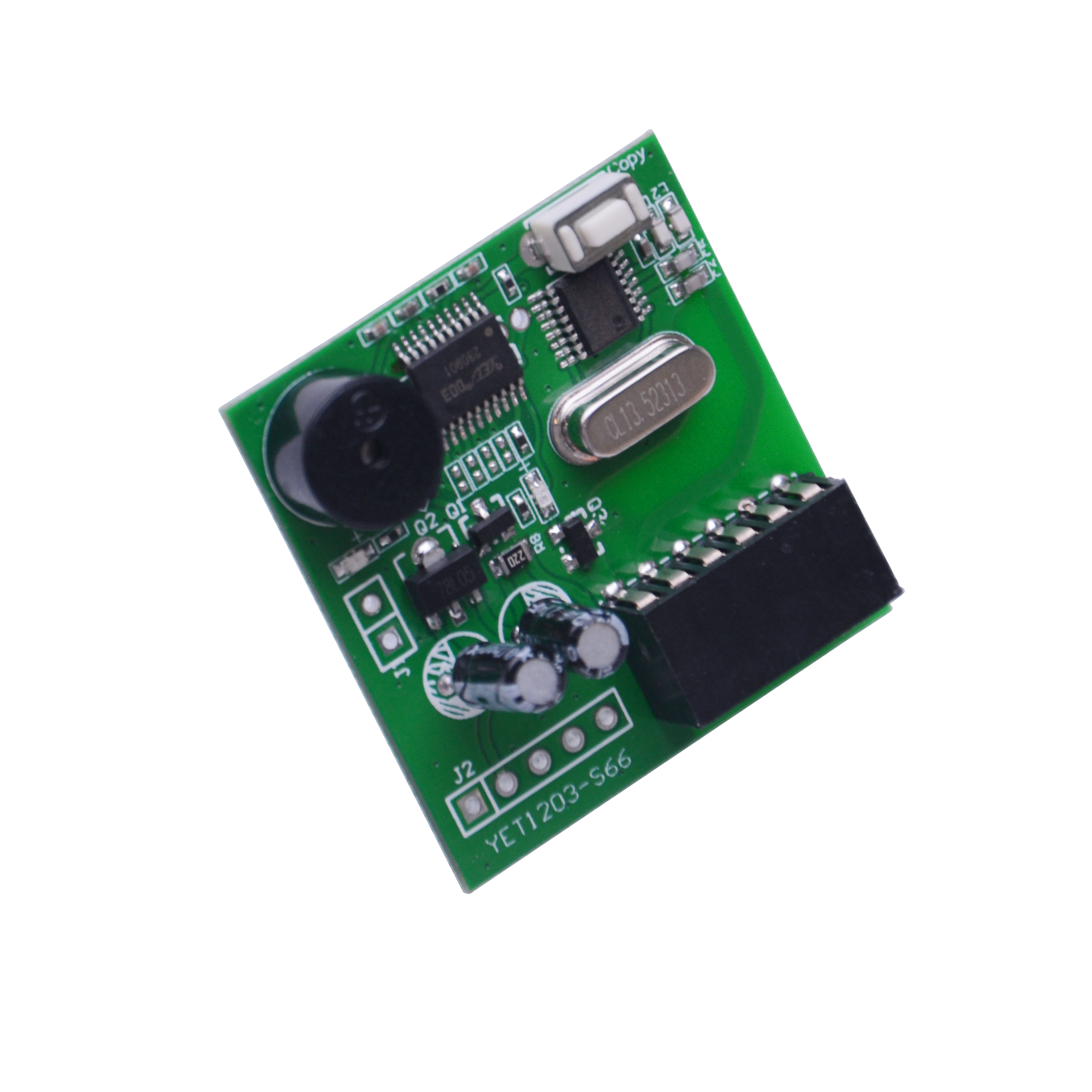

YET1203 1 Channel RF Receiver Module with Decoding function

In the recent past,one of our new design products is the YET1203 RF receiver module, which is capable of decoding all rolling code remote control which is with the HCS301 chip. This receiver module is particularly useful for applications where security and convenience are top priorities.

In addition to its advanced decoding capabilities, this RF receiver module also features a momentary output that ensures precise and reliable operation. This makes it ideal for a variety of industrial, commercial, and residential applications.If you have needs for HCS301 decoding receiver module，please do not miss this YET1203 receiver module.

The Main technical data for this receiver module are as follows，

Operating voltage is DC12V. Static working current is≤ 11 mA. Working temperature is from -20℃ to + 70℃ . The Receiving sensitivity is ≥-118 dBm. Its Working frequency is 433.92 MHz, and if you have other frequency needs, we can customize it for you.Output current is ≤60MA. It can store about 250 pieces rolling code remote control keys.Its Size is 32mm x33mmx12mm.

How to learn remote control

Press the learning button on the receiving module, the LED light will light up, and you need to wait for about 1 second until the buzzer makes a "beep"sound. Release the learning button, and then the receiving module enters the learning state. Then press and hold the remote control button that needs to learn, and hear the buzzer "beep" sound, it indicates the current remote control button has been learned successfully. If you want to learn more buttons ,you can repeat this way for other buttons.

If there is no remote control for learning for more than 11 seconds, the buzzer will make"beep" "beep" two sound, and the LED will be off, the receiver module quits the learning state at this moment.You need to make it enter to the learning state at first if you still want to learn the remote control once it quits the learning state.

How to remove the memorized remote control

If the remote control is lost, and you want to deactivate all remote controls, namely to make the remote control memorized invalid, you need to long press the learning button (over 4S), when you hear the buzzer makes a few short sound , then makes a long sound,the receiving module cleans up all the memorized remote control. After clearing all the codes, the receiving module automatically enters the learning state.

Okay，above are the details of this YET1203 decoding receiver module I would like to share with you.At Shenzhen YET company, we are committed to providing our customers with the latest in cutting-edge technology and exceptional customer service. Our team of experienced professionals are always available to answer any questions you may have about our products and ensure that you receive the right solution for your needs.So if you are interested in this receiver module，please feel free to contact us to get more information.
